Thông tin chi tiết sản phẩm:
|
| Vật liệu: | Đúc sắt | Ứng dụng: | Sửa chữa máy công trình |
|---|---|---|---|
| Trao đổi: | 100% | Chất lượng: | Như bản gốc |
| Dịch vụ: | Dịch vụ sau bán hàng | Đa dạng: | Nhiều |

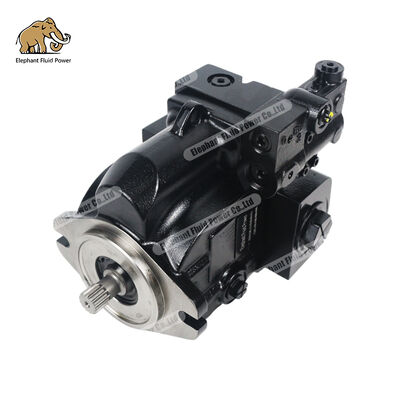

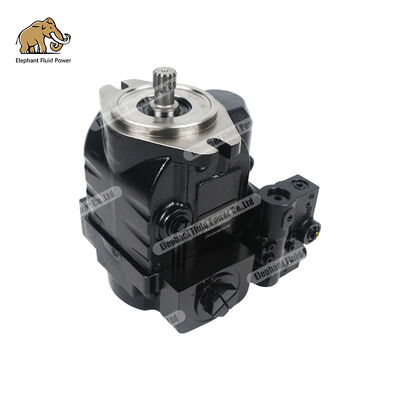

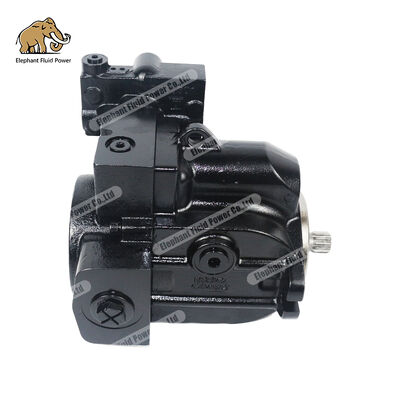

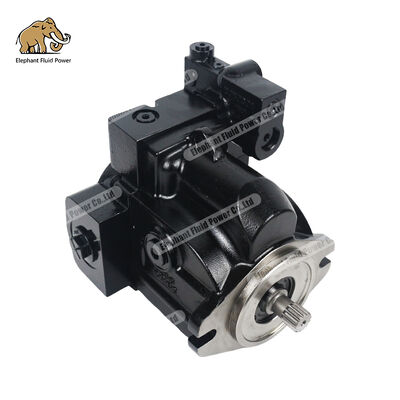

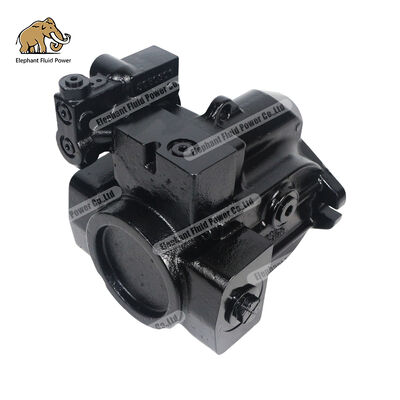

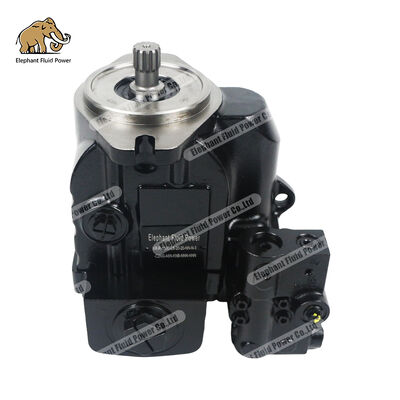

| Làm nổi bật: | OEM Quality Hydraulic Piston Pump,Iron Cast Sauer DANFOSS Pump,38 cm3 Displacement KRR Series Pump |
||
| AuxMount/EndCap code | RG |
| Brand Name | ELEPHANT FLUID POWER |
| Contamination level max. | 22/18/13 - ISO 4406 |
| Continuous rotation max. | 2650 rpm |
| Control | Load sensing |
| Control type | LS |
| Displacement | 38 cm³ |
| Displacement limiter | None |
| Holes circle | 146 mm |
| Inlet | 1.7/8-12 UNF |
| Model | Frame K |
| Model code | S45 KR-R-038C-LS-20-20-NN-N-3-C2RG-A6N-PLB-NNN-NNN |
| Mounting flange | SAE-B2 |
| Number of mounting holes | 2 |
| Number of outer grooves | 13 |
| Oil viscosity recommended | 9 - 110 cSt |
| Outlet | 1.5/16-12 UNF |
| Port position | Side |
| Pressure continuous max. | 260 bar |
| Pressure max. | 350 bar |
| Recess | 101.6 mm |
| Rotation direction | Right (CW) |
| Rotation max. at max. pressure | 2650 rpm |
| Rotational speed max. | 2800 rpm |
| Rotational speed min. | 500 rpm |
| Sensor type | None |
| Shaft code | C2 |
| Shaft diameter | 21.8 mm |
| Shaft seal material | FKM/FPM (Viton®) |
| Shaft spline | 13T 16/32 SAE-B |
| Shaft type | Spline |
| Temperature intermittent max. | +104 °C |
| Temperature max. | +82 °C |
| Temperature min. | -40 °C |
| Manufacturer | Model Series |
|---|---|
| Rexroth | A4VSO, A4VG, A4V, A4VTG, A10VSO, A11VO, A10VG, A11VG, A10F, A7V, A6V, A8V |
| Sauer | HRR, SPV, MRKRR, MPV, MMF, JRR, ERR Series, MF, PVD Series |
| Hitachi | HPV, HMGC, HMGF, HPK, HMT, HMGE, EX, ZX |
| SBS/SPK/VRD/E | SBS, SPK, VRD, E |
| Kawasaki | K3V, K5V, K7V, M2X, M5X, MX |
| Linde | HMF, MPF, MPR, HRR, HPR, HMR, BPV, BMFBMV, BRR, HPV, HMF, HMV |
| Eaton | 33, 39, 46, 54, 64, 76, PVXS, PVE, TA, PVM, PVH, PVB |
| Parker | PVP, PV, F11, F12, V12, P2, P3, PAVC |
| Nachi | PVD, PVS, PZ, PVK, PCL, PVK |
| Liebherr | A3H, LPVD, FMV, LMF, DPVP |
| Kayaba | PSVD2, PSV2, PSVS, PSV, PSVL, MSG, MAG, MSF |
| Denison | PV, P6, P7, P11, P14 |
